Ball Transfer Units Price Ranges

March 21, 2023 by Product Engineer

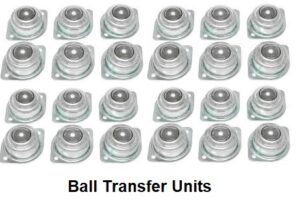

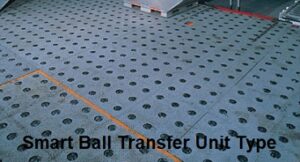

Ball transfer units are mechanical devices used in material handling and industrial applications. They consist of a ball mounted on a set of rolling elements that allow the ball to rotate freely in any direction.

The basic working mechanism of a ball transfer unit is simple. It consists of a housing or base, a ball, and a set of rolling elements. The ball sits inside the housing and is supported by the rolling elements, which are typically ball bearings or cylindrical rollers. The rolling elements are arranged in a circular pattern around the ball, and are held in place by a retainer or cage.

When a load is placed on the ball transfer unit, the ball rotates freely in any direction, allowing the load to be moved easily and smoothly. The rolling elements ensure that the load is evenly distributed across the ball, reducing friction and minimizing the force required to move the load.

Ball Transfer Units by Mounting Types

April 14, 2021December 18, 2020 by Product Engineer

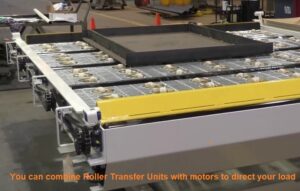

Ball transfer units are very useful parts for product handling and transfer operations in many types of machines.These load-bearing parts are manufactured in different types according to each job and place of use.We will now examine a few of these assembly and product types together.
First of all, let’s consider the title of ball transfer units according to the assembly types.Commonly used mounting directions are as follows.

1-Thread Fixing Units

It is assembled by inserting into the threaded hole which opened on the machine body or by tightening with nut.It is not a preferred type because of the difficulty of positioning.
