Electric linear actuators are one of the most widely used components in modern industrial automation, robotics, and motion control systems. They convert electrical energy into precise linear motion, enabling controlled pushing, pulling, lifting, or positioning.
In this guide, we will cover:
- How electric linear actuators work
- Where they are used
- How to choose the right actuator
- And which brands/products are best for different applications
What Is an Electric Linear Actuator?
An electric linear actuator is a device that creates straight-line motion using an electric motor, typically combined with a lead screw, ball screw, or belt mechanism.
Key components:
- Electric motor
- Screw mechanism (ball screw / lead screw)
- Guide system
- Housing and seals
👉 These components work together to provide precise, repeatable motion control

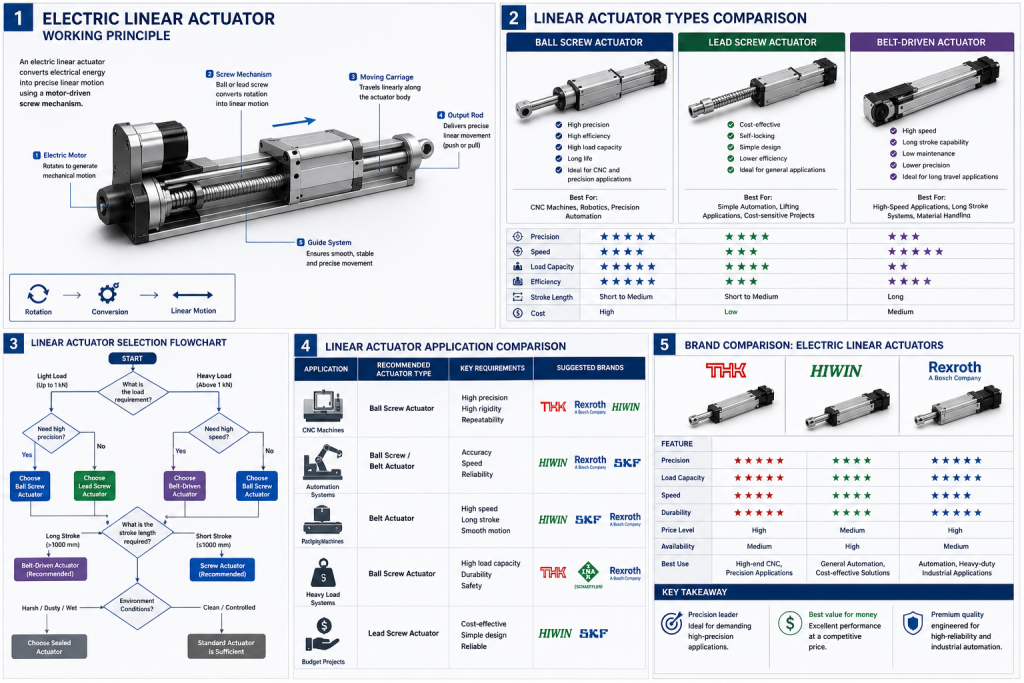

How Does an Electric Linear Actuator Work?
The working principle is straightforward:
- The motor rotates
- Rotation is transferred to a screw or belt
- The screw converts rotary motion into linear motion
- The carriage or rod moves forward or backward
👉 This allows high precision positioning, especially compared to pneumatic systems
Where Are Electric Linear Actuators Used?
Electric actuators are used in a wide range of industries:
🏭 Industrial Automation
- Assembly lines
- Pick & place systems
🤖 Robotics
- Axis movement
- Precision positioning
📦 Packaging Machines
- Product handling
- Conveyor adjustments
🛠 CNC & Machine Tools
- Table positioning
- Tool movement
🏥 Medical Equipment
- Adjustable beds
- Imaging systems
Types of Electric Linear Actuators
🔹 Ball Screw Actuators
- High precision
- High efficiency
- Ideal for CNC and precision machines
🔹 Lead Screw Actuators
- Cost-effective
- Self-locking
- Ideal for simple automation
🔹 Belt-Driven Actuators
- High speed
- Long stroke
- Lower precision
How to Choose the Right Linear Actuator
Choosing the correct actuator is critical for performance and cost efficiency.
🔑 Key selection criteria:
1. Load Capacity
- Light duty → Lead screw
- Heavy duty → Ball screw
2. Speed
- High speed → Belt drive
- Medium → Ball screw
3. Precision
- High precision → Ball screw
- Standard → Lead screw
4. Stroke Length
- Long stroke → Belt
- Short stroke → Screw systems
5. Environment
- Dusty → Sealed actuator
- Clean → Open systems
Top Linear Actuator Brands (Based on Industry Use)
Rubix benzeri distribütörlerin portföyüne göre en yaygın markalar:
🔹 Bosch Rexroth
- Premium quality
- High precision systems
- Ideal for automation & heavy-duty
🔹 HIWIN
- Cost-effective
- Widely used
- Good performance
🔹 THK
- Ultra precision
- High-end applications
🔹 SKF
- Reliable and durable
- Industrial applications
🔹 INA (Schaeffler)
- Strong engineering
- Long life systems
Which Linear Actuator Is Best for Your Application?
🔧 Application-Based Selection
| Application | Recommended Type | Suggested Brands |
| CNC Machines | Ball Screw Actuator | THK, Bosch Rexroth |
| Automation Systems | Ball Screw / Belt | HIWIN, Rexroth |
| Packaging Machines | Belt Actuator | HIWIN, SKF |
| Heavy Load Systems | Ball Screw | THK, INA |
| Budget Projects | Lead Screw | HIWIN |
Brand Comparison: THK vs HIWIN vs Bosch Rexroth
| Feature | THK | HIWIN | Bosch Rexroth |
| Precision | ⭐⭐⭐⭐⭐ | ⭐⭐⭐⭐ | ⭐⭐⭐⭐⭐ |
| Price | High | Medium | High |
| Load Capacity | Excellent | Very Good | Excellent |
| Availability | Medium | High | Medium |
| Best Use | High-end CNC | General use | Automation |
👉 THK = precision leader
👉 HIWIN = best value
👉 Rexroth = premium automation

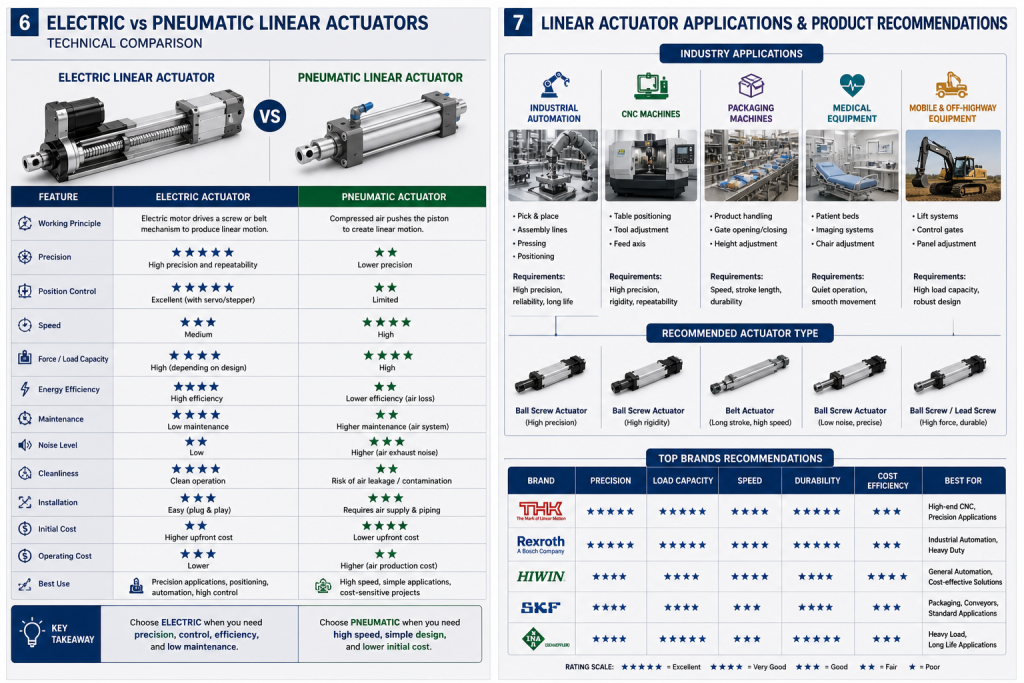

Electric vs Pneumatic Linear Actuators
| Feature | Electric | Pneumatic |
| Precision | High | Low |
| Control | Excellent | Limited |
| Maintenance | Low | High |
| Speed | Medium | High |
| Cost | Higher upfront | Lower upfront |
👉 Electric actuators are preferred for precision and control
Common Problems and Solutions
🔧 Problem: Overheating
→ Cause: overload
→ Solution: correct sizing
🔧 Problem: Noise
→ Cause: poor lubrication
→ Solution: regular maintenance
🔧 Problem: Misalignment
→ Cause: improper installation
→ Solution: alignment check
Conclusion
Electric linear actuators are essential components in modern motion systems. The right choice depends on:
- Load requirements
- Precision needs
- Speed expectations
- Budget
👉 For high precision → THK or Bosch Rexroth
👉 For cost-effective solutions → HIWIN
